When it comes to AlN Ceramic Substrate metalization for IGBT cooling, AMB (Active Metal Brazing) stands out as the most reliable among the four major processes (DPC, TFC, DBC, AMB). Here’s the proof:
1. Peel Strength (Adhesion)
AMB (25 MPa) > DBC (21 MPa) > TFC (15 MPa) > DPC (13 MPa)
? Why? AMB forms strong TiN bonds through reactive soldering (e.g., Ti + AlN → TiN), ensuring superior adhesion.
2. Thermal Shock Test (-55°C to 150°C Cycling)
AMB: Survives 1,500 cycles with no cracks/delamination
DBC: 1,000 cycles before microcracks appear in AlN
TFC: 500 cycles before partial copper peeling
DPC: 200 cycles before complete copper layer failure
3. Power Cycling Test (1,200A / 3.3kV)
AMB: 70,000 cycles before thermal resistance rises <15% (longest lifespan)
DBC: Fails at 40,000 cycles (thermal resistance >15%)
TFC/DPC: Significant degradation at 20,000 / 10,000 cycles
Final Verdict & Best Applications

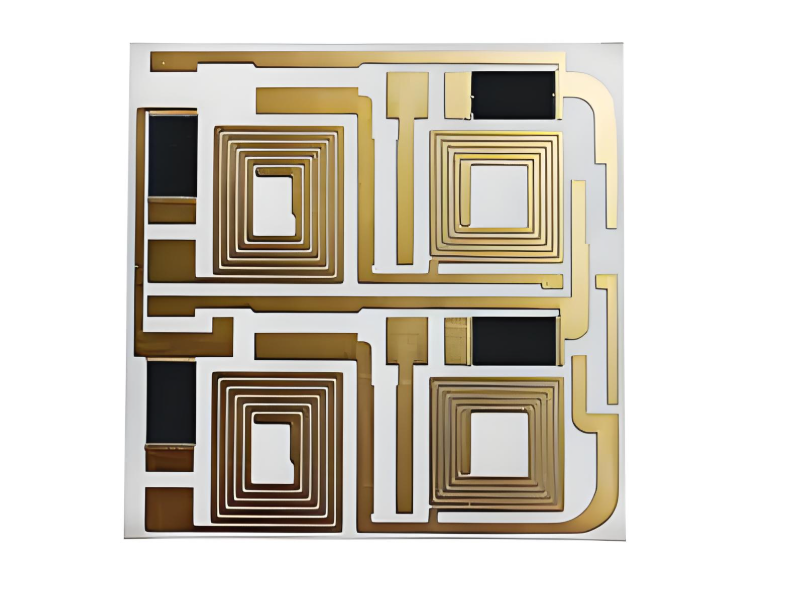

? AMB Ceramic Substrate – The Gold Standard
✔ Best for:
High-reliability applications like EV powertrains, high-speed rail converters, ultra-high-voltage smart grids
✔ Why?
Strongest bond, best thermal shock & power cycling resistance
? DBC Ceramic Substrate – The Balanced Choice
✔ Best for:
Solar inverters, industrial motor drives (medium power, cost-sensitive)
✔ Why?
30-40% cheaper than AMB, decent thermal performance
? TFC/DPC Ceramic Substrates – Budget Options
✔ Best for:
Low-power uses (LED drivers, consumer electronics)
✔ Why?
Weaker adhesion & shorter lifespan, but low cost
Future Trends
AMB is evolving with low-temperature reactive solders (AgCuInTi, AgCuSnTi) and AlN-Si₃N₄ hybrid substrates, making it even better for extreme conditions.
Final Ranking:
1️⃣ AMB (High reliability) > 2️⃣ DBC (Mid-range) > 3️⃣ TFC/DPC (Low-cost, low-performance)
For mission-critical power modules, AMB is the clear winner.
